OCTG (Oil Country Tubular Goods) is a category of high-performance steel pipes specifically engineered for the drilling, completion, and production of oil and gas wells. They form the essential infrastructure of a well, acting as both its structural skeleton and circulatory system. These components are subjected to extreme downhole conditions, including high pressure, corrosive fluids, and massive mechanical loads. Consequently, they are manufactured by specialized OCTG pipe manufacturers to far more rigorous specifications than standard pipeline tubes, with stringent controls on their physical, mechanical, and chemical properties to ensure maximum reliability and safety.

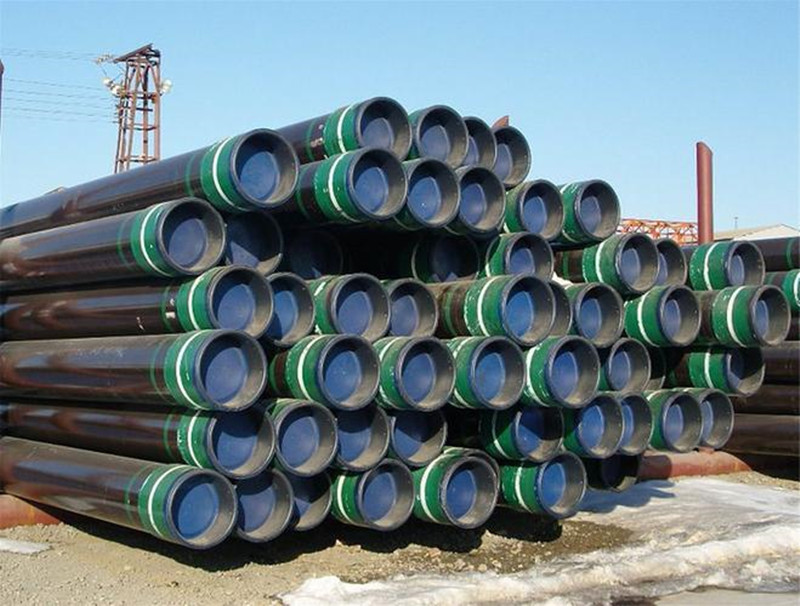

Casing: This is large-diameter pipe run into the drilled wellbore and cemented in place. It serves as the primary structural component, preventing the wellbore from collapsing, isolating different geological zones to protect freshwater aquifers and prevent cross-flow, and providing a conduit for subsequent operations.

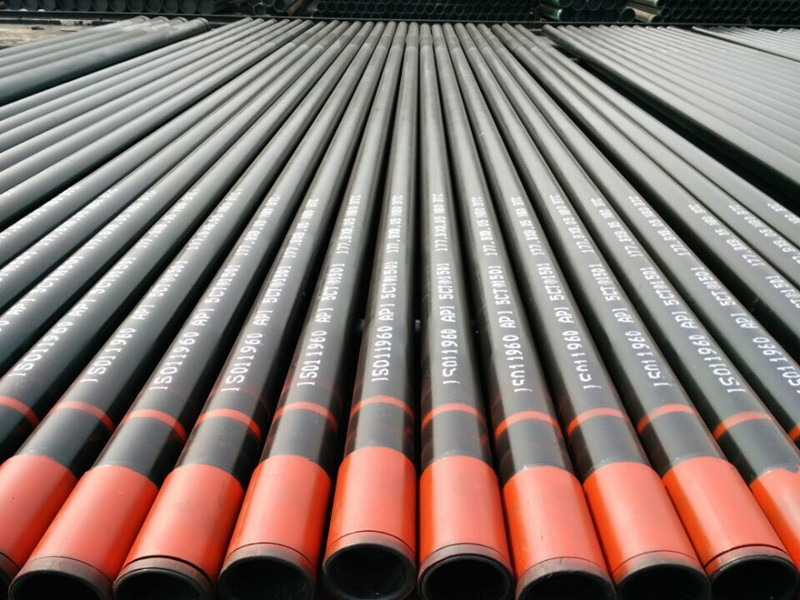

Tubing: This is the smallest-diameter pipe, run inside the production casing. It is the primary flow conduit for oil and gas from the reservoir to the surface. It is retrievable for maintenance and is equipped with a packer to seal the annulus, forcing all production through itself. Tubing is selected to withstand corrosive well fluids (like H₂S and CO₂) and the well's specific pressure and temperature profile.

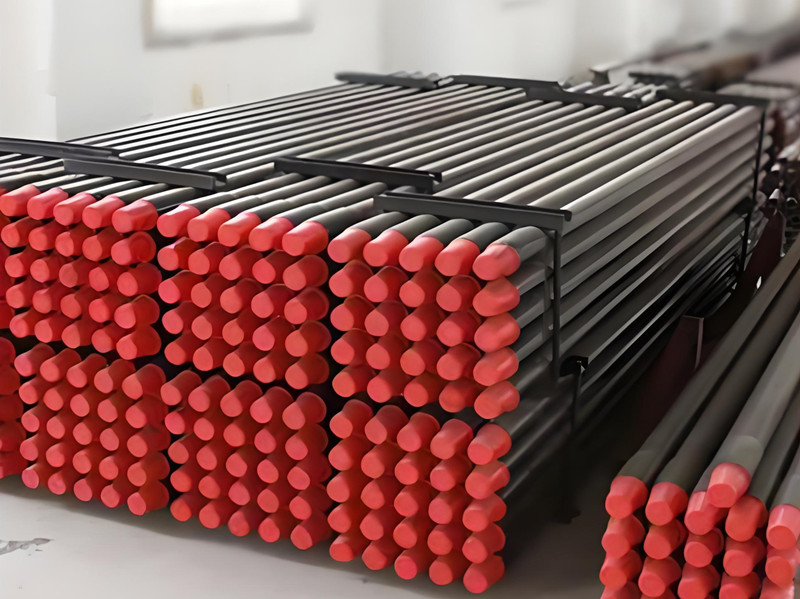

Drill Pipe: This forms the backbone of the drill string, connecting the surface rig to the drill bit. It transmits hydraulic power and rotational torque to the bit and circulates drilling mud to cool the bit, carry cuttings to the surface, and control well pressure. Individual joints are connected with robust, threaded tool joints.
OCTG is further defined by critical specifications that determine its application and performance.
Grade: This designation (e.g., J-55, N-80, L-80, P-110) indicates the steel's yield strength (the number in thousands of psi) and its chemical composition. Grades like L-80 are specifically designed to resist Sulfide Stress Cracking (SSC) in corrosive, sour environments containing H₂S.
Connection Type: The threaded connections are crucial for pressure integrity and joint strength.
API Connections (e.g., Round, Buttress) are standardized and provide reliable, interchangeable performance.
Premium Connections are proprietary, engineered threads that offer superior gas-tight sealing, higher structural performance, and better fatigue resistance for extreme applications like deepwater or HPHT (High-Pressure/High-Temperature) wells.
Manufacturing Process:
Seamless Pipe: Made by piercing a solid steel billet, resulting in a pipe with uniform strength around its circumference and no longitudinal weld. This is the most common and robust type for critical OCTG applications.
ERW/HFW Pipe: Made by rolling and welding steel plate. Modern High-Frequency Welded (HFW) pipe offers excellent quality and is often used for less demanding casing strings.
