The role of casing & tubing pup joint in oil drilling

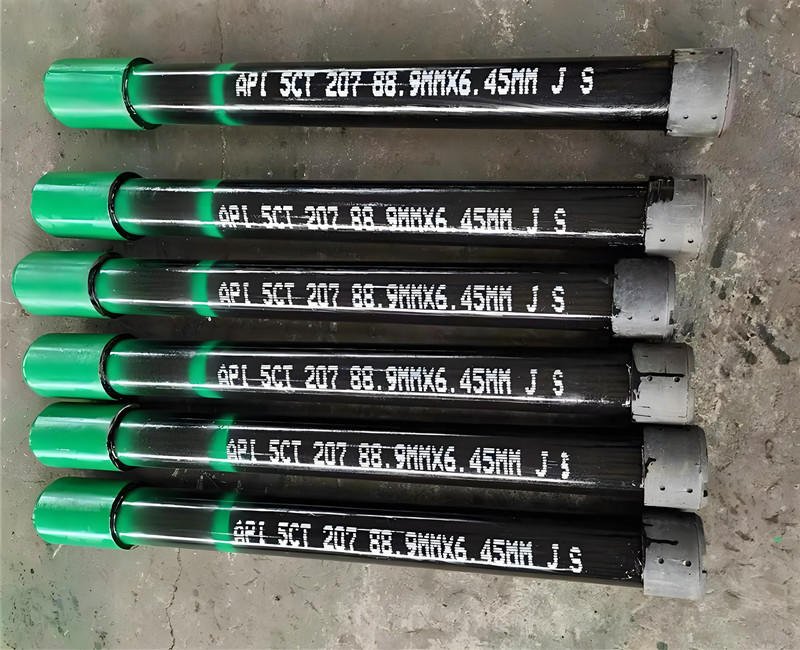

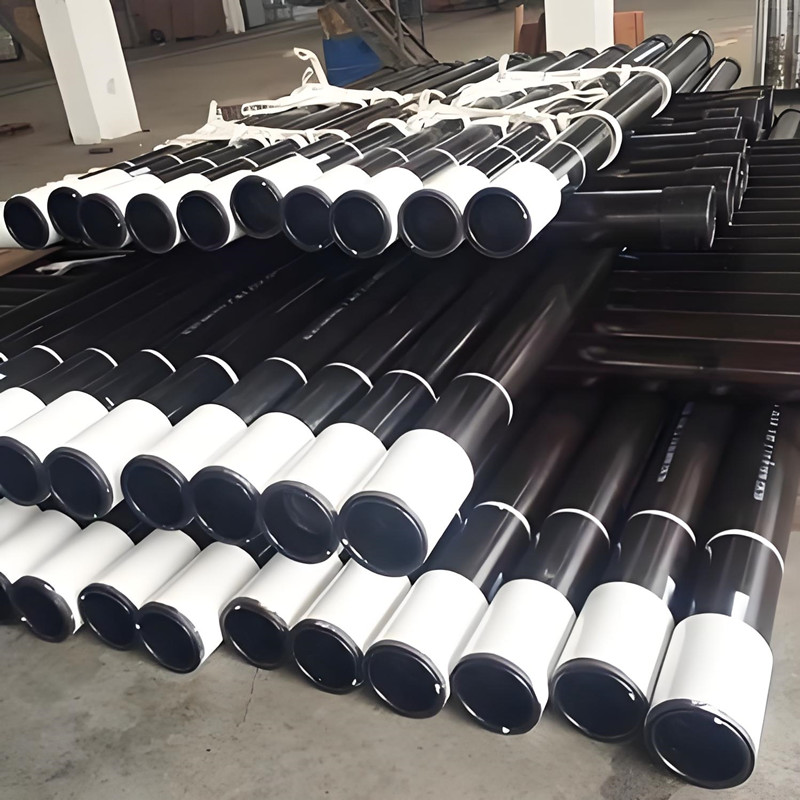

a casing or tubing pup joint is a short-length piece of pipe used to make fine adjustments to the overall length of a string of casing or tubing.Let's break down their role, purpose, and importance in detail.

The Core Function: "Precision Adjustment"

The primary role of a pup joint is to serve as a "spacer" or "shim" to ensure the entire string of pipe lands at exactly the correct depth within the wellbore.

Think of it like this: When building a string of casing, you primarily use long joints of pipe (typically Range 2: 28-32 feet or Range 3: 42-48 feet). It's nearly impossible for the planned well depth to be an exact multiple of these standard lengths. The pup joint is used to "make up" that final, critical difference in length. The casing pup joint is used to ""make up"" that final, critical difference in length.

Key Purposes and Applications

Pup joints are indispensable for several operational reasons:

Landing the Casing Hanger: The most critical use is at the top of the string. The casing hanger must sit perfectly within the wellhead to properly seal the well and support the weight of the entire casing string. A pup joint on top allows engineers to fine-tune the string length so the hanger lands at the precise designed elevation.

Setting Packers and Downhole Equipment: Many completion systems use permanent or retrievable packers (devices that seal the annulus between the tubing and casing). These packers must be set at exact, predetermined depths. Pup joints are used in the tubing string above or below the packer to position it perfectly.

Thread Protection: Longer, more expensive components like subsurface safety valves or chemical injection mandrels are often screwed between two pup joints. This protects their specialized threads during handling and installation and makes them easier to replace if damaged.

Space-Out in Completions: During well completion, the bottom of the tubing string must be precisely positioned relative to the perforations or other production equipment. Pup joints are essential for this "space-out" procedure to optimize production flow.

Junk Catchers/Flow Valves: Short pup joints can be modified and used as simple junk catchers or placed in the string to facilitate well circulation.

Standardization and Availability

Pup joints are manufactured in standard, short lengths. Common lengths are 1ft, 2ft, 3ft, 5ft, 10ft, 15ft, and 20ft. This allows drillers and completion engineers to have a "toolkit" of different lengths on the rig floor to combine and achieve the exact required measurement.
