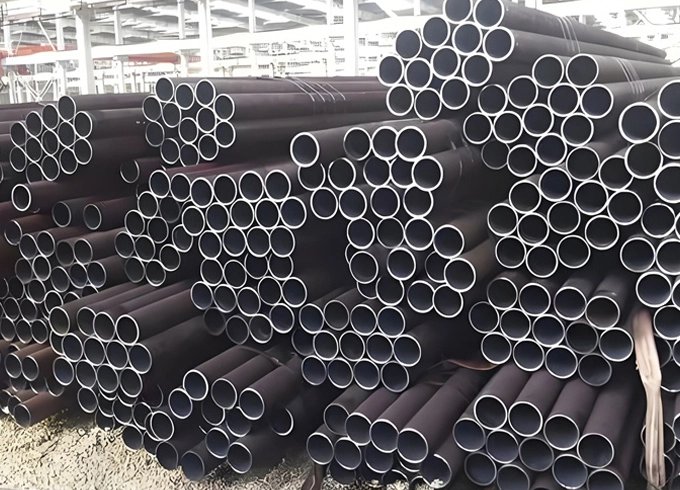

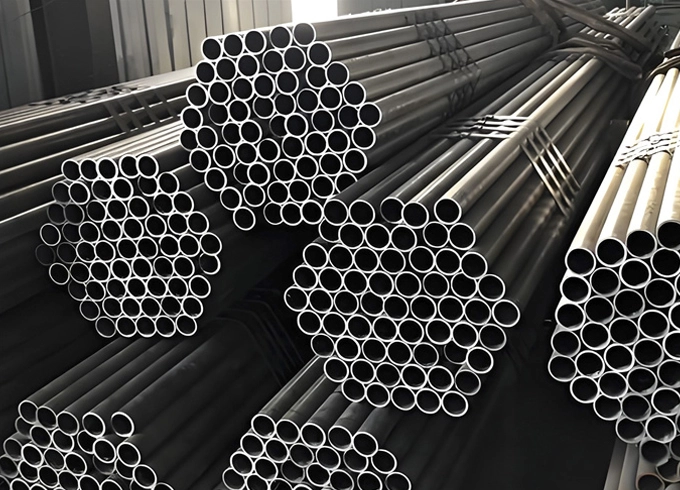

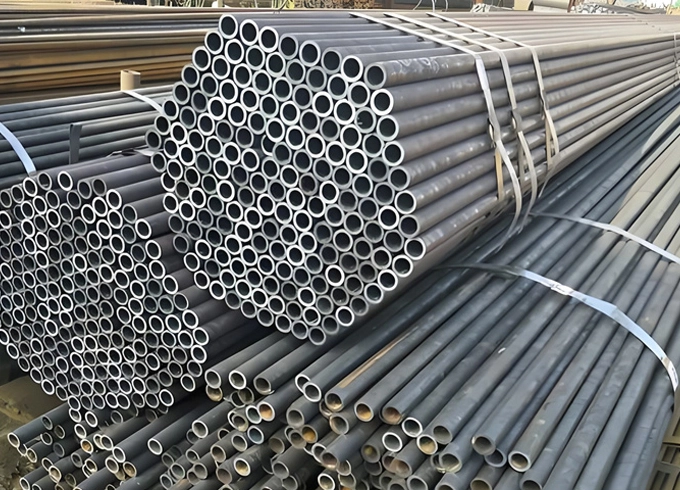

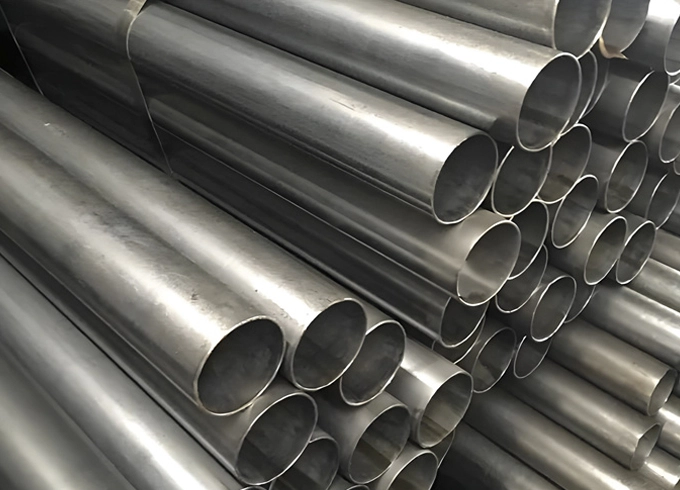

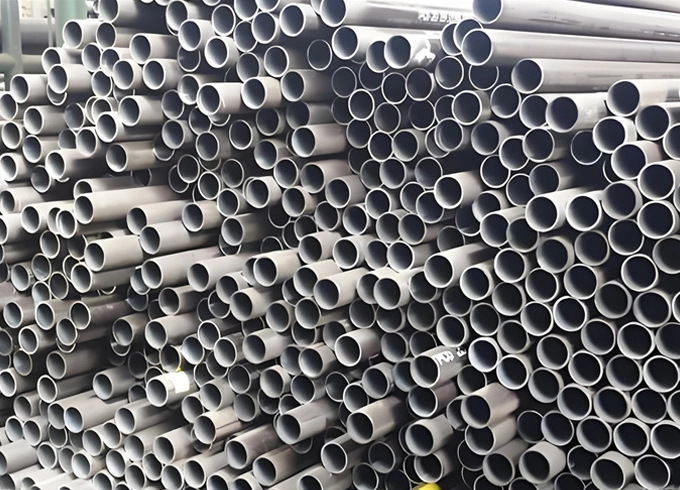

Seamless mechanical tubes are cylindrical hollow structures manufactured without welding seams, created through processes like extrusion, piercing, or rotary piercing. They are made from carbon steel, alloy steel, or stainless steel, ensuring uniformity in wall thickness and structural integrity. These tubes are characterized by high precision, smooth surfaces, and excellent mechanical properties, making them suitable for demanding applications.
Seamless mechanical tubes are widely used in industries requiring high strength, durability, and precision. They are essential in automotive components (e.g., axles, shafts), machinery parts (e.g., hydraulic cylinders, bearings), and construction equipment.
| Standard | Common Grades | Description |
| ASTM A519 | 1020, 1026, 4130, 4140 | Seamless carbon and alloy steel mechanical tubes. |
| ASTM A269 | TP304, TP316, TP321 | Seamless and welded austenitic stainless steel tubes. |
| ASTM A511 | Various | Seamless stainless steel mechanical tubes. |
| EN 10305-1 | E215, E235, E355 | Precision seamless steel tubes for mechanical and general engineering. |
| EN 10297-1 | C35E, 34CrMo4, 42CrMo4 | Seamless circular steel tubes for mechanical and general engineering. |
| DIN 2391 | St35, St52, CK45 | Precision seamless steel tubes with special dimensional accuracy. |
| DIN 17458 | 1.4301 (304), 1.4401 (316) | Seamless stainless steel tubes for mechanical engineering. |
| JIS G3445 | STKM11A, STKM12A, STKM13A | Carbon steel tubes for machine structural purposes. |
| JIS G3459 | STBA20, STBA22, STBA24 | Alloy steel tubes for machine structural purposes. |
| GB/T 3639 | 20#, 45#, 16Mn | Cold-drawn or cold-rolled precision seamless steel tubes. |
| GB/T 8162 | Various | Seamless steel tubes for structural purposes. |
1. Product Name: Mechanical Tube & Pipe, Structure Tube, Seamless Mechanical Tubing, Seamless Structure Tube, Precision Mechanical Tube, Seamless Precision Tube, Seamless Hydraulic Tube
2. Dimensions
Outer Diameter (OD): Ranges from a few millimeters to several inches, depending on application.
Wall Thickness: Varies based on strength requirements, typically specified in millimeters or inches.
Length: Customizable, with standard lengths ranging from 6 to 12 meters.
3. Tolerances
OD Tolerance: Tight tolerances (e.g., ±0.1 mm) for precision applications.
Wall Thickness Tolerance: Typically ±10% of the nominal thickness.
Straightness: High straightness requirements for mechanical applications.
4. Mechanical Properties
Tensile Strength: Varies by material (e.g., 415 MPa for carbon steel, up to 1000 MPa for alloy steel).
Yield Strength: Critical for load-bearing applications.
Elongation: Indicates ductility and flexibility under stress.
5. Material Composition
Carbon Steel: Commonly used for general-purpose applications (e.g., ASTM A519).
Alloy Steel: Enhanced strength and wear resistance (e.g., 4140, 4340).
Stainless Steel: Corrosion resistance and high-temperature performance (e.g., 304, 316).
Structural steel tubes are hollow, cylindrical sections made from carbon steel or alloy steel, designed to provide high strength and load-bearing capacity in construction and engineering applications. They are manufactured in seamless or welded forms, with uniform wall thickness and precise dimensions. These tubes are characterized by their ability to withstand heavy loads, resist deformation, and endure harsh environmental conditions.
Structural steel tubes are essential components in construction and engineering, providing high strength, durability, and versatility. They are widely used in building frameworks, bridges, and infrastructure due to their ability to withstand heavy loads and harsh environmental conditions. These tubes are also employed in industrial applications, such as machinery supports, conveyor systems, and storage equipment.
Additionally, structural steel tubes are used in renewable energy projects, such as wind turbine towers, and in transportation for vehicle chassis and roll cages. Overall, they are critical for ensuring safety, stability, and performance in various sectors.
1. Purpose and Applications
Structural steel pipes are integral to construction and infrastructure, providing essential support in buildings, bridges, and towers. They are designed for load-bearing and stability. In contrast, mechanical steel pipes are used in precision engineering, such as in automotive components, hydraulic systems, and machinery parts, where high precision and strength under mechanical stress are required.
2. Material and Manufacturing
Structural steel pipes are typically made from carbon steel or low-alloy steel and can be either seamless or welded. They are manufactured with a focus on cost-effectiveness and strength. Mechanical steel pipes, on the other hand, are made from a variety of steels including carbon, alloy, and stainless steel, and are often seamless to ensure uniformity and precision.
3. Dimensional Tolerances
Structural steel pipes have less strict dimensional tolerances compared to mechanical pipes, as their primary focus is on strength and load-bearing capacity. Mechanical steel pipes require tight tolerances for outer diameter, wall thickness, and straightness, along with a high surface finish, which is critical for their precision applications.
4. Mechanical Properties
Structural steel pipes are characterized by high tensile and yield strength, with less emphasis on elongation and surface finish. Mechanical steel pipes also have high tensile and yield strength but with additional requirements for elongation and a superior surface finish to ensure durability and reduce friction in moving parts.
Mechanical steel pipes are crucial in the automotive sector. They are used in drive shafts and axles for power transmission, chassis and roll cages for structural support, and exhaust systems for their heat and corrosion resistance.
In machinery, these pipes are used in hydraulic cylinders for high-pressure performance, bearings and rollers for smooth operation, and conveyor systems for durable material handling.
Lightweight yet strong mechanical steel pipes are used in scaffolding and structural supports for stability in building frameworks and bridges.
Mechanical pipes are used in wind turbines for tower construction and in the oil and gas industry for high-pressure and corrosion-resistant applications in drilling and transportation.
High-precision mechanical steel pipes are used in robotics for robotic arms and in the aerospace industry for lightweight and strong aircraft structures.
