Pipe fitting tee is a type of pipe fitting that is shaped like the letter "T." It is used to combine or split fluid flow in a piping system. A tee has one inlet and two outlets (or vice versa), with the outlets arranged at a 90-degree angle to the main pipe. Tees are commonly used in plumbing, industrial, and mechanical applications.
Pipe fitting tees serve three main functions: branching, which divides fluid or gas flow into two paths, such as splitting a water supply line; combining, which merges two streams into one, useful for integrating multiple sources; and redirecting, which alters flow direction to adapt to complex pipeline layouts, especially in space-constrained systems.

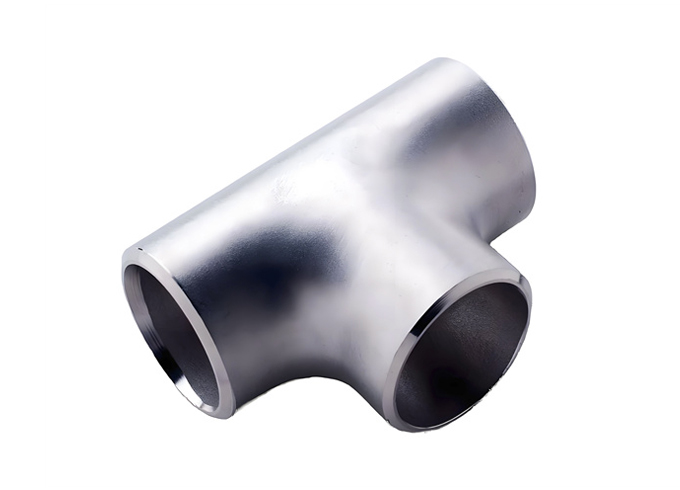

1. Equal Pipe Fitting Tee:
All three openings (one inlet and two outlets) have the same diameter.
Example: A 2" x 2" x 2" tee means all three connections are 2 inches in diameter.
Used when the main pipe and branch pipes are of the same size.

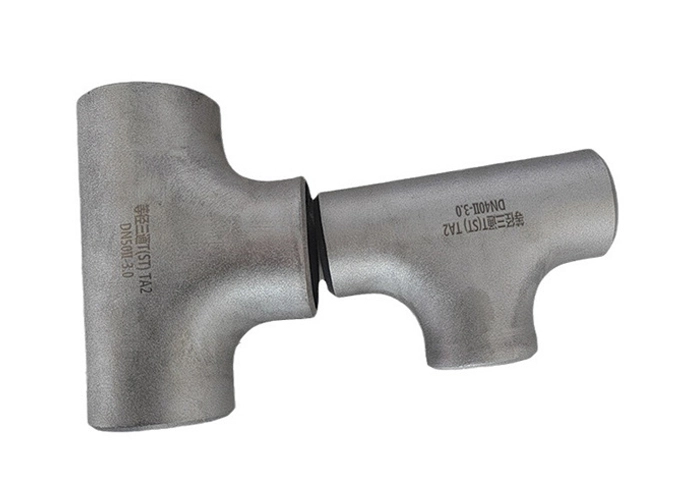

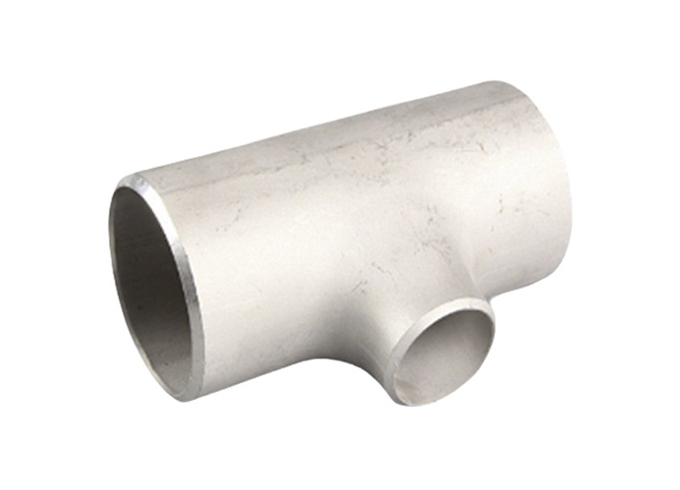

2. Reducing Pipe Fitting Tee:
One or more openings have a different diameter than the main pipe.
Example: A 2" x 1.5" x 2" tee means the branch is 1.5 inches, while the main pipe is 2 inches.
Used to connect pipes of different sizes.

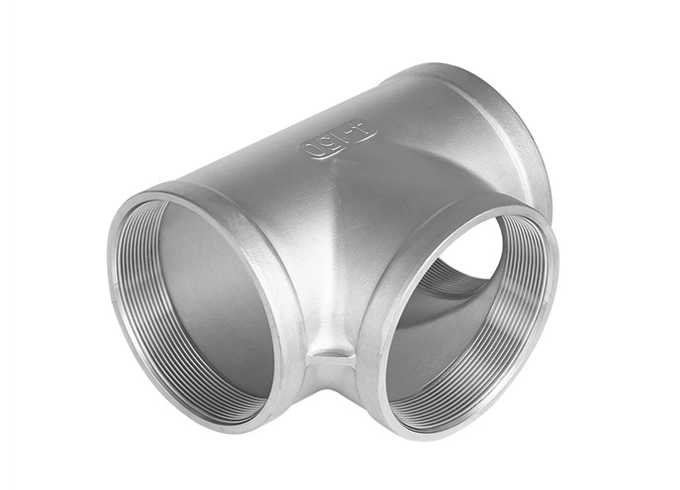

1. Threaded Pipe Tee:
Features threaded ends (internal or external threads) for screwing onto threaded pipes.
Commonly used in low-pressure applications, such as plumbing and gas lines.
Easy to install and disassemble without welding.

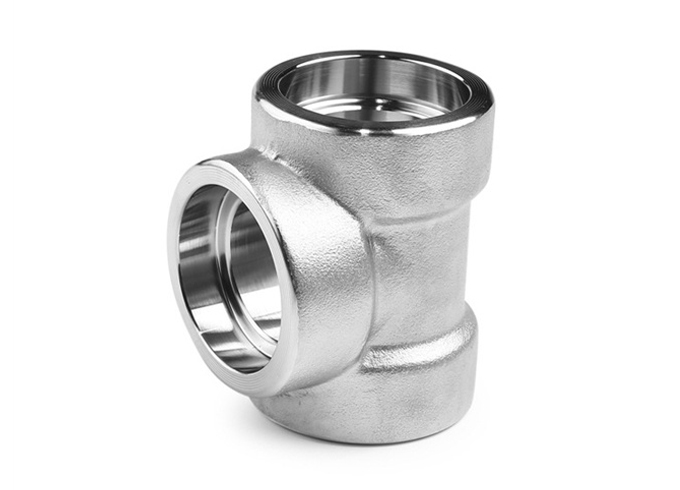

2. Socket Weld Pipe Tee:
Designed for socket weld connections, where the pipe is inserted into the tee's socket and then welded.
Provides a strong, leak-proof joint.
Used in high-pressure and high-temperature systems.

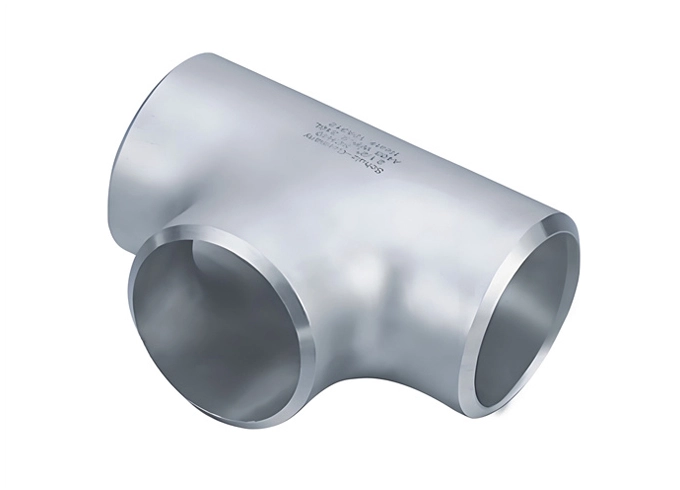

3. Butt Weld Pipe Tee:
Designed for butt welding, where the tee and pipe are aligned and welded together.
Offers a robust and durable connection.
Commonly used in industrial, high-pressure, and high-temperature piping systems.

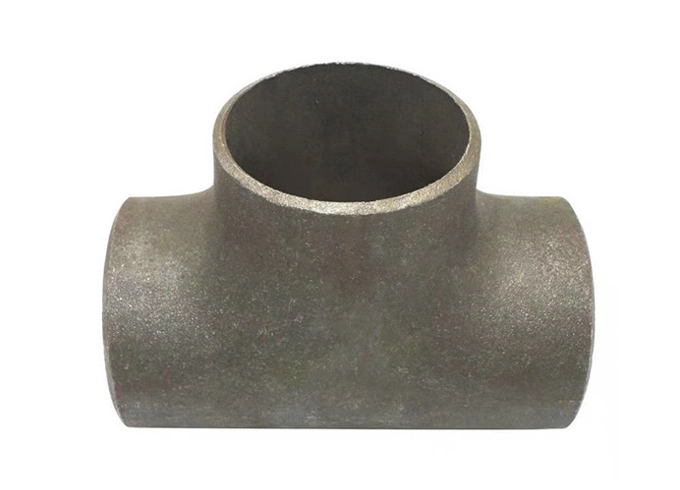

1. Carbon Steel Tee:
Made from carbon steel, known for its strength and durability.
Used in high-pressure and high-temperature applications, such as oil and gas pipelines, industrial plants, and power generation.
2. Stainless Steel Tee:
Made from stainless steel, offering excellent corrosion resistance.
Ideal for chemical, pharmaceutical, and food processing industries, as well as applications requiring hygiene and durability.
3. Alloy Steel Tee:
Characteristics: Engineered to withstand extreme conditions, including high temperatures and pressures. Common grades include Cr5Mo, 12Cr1MoV, and ASTM A860 WPHY.
Applications: Power plants, petrochemical industries, and other high-stress environments.
1. Plumbing Systems:
Pipe fitting tees are widely used in plumbing to distribute water supply to multiple fixtures, such as sinks, showers, and toilets. They ensure efficient branching of pipelines in residential, commercial, and industrial buildings.
2. HVAC Systems:
In heating, ventilation, and air conditioning systems, tees help direct airflow or refrigerant to different zones. They are essential for maintaining balanced temperature control and efficient energy distribution.
3. Industrial Pipelines:
Tees are used in industrial settings to transport chemicals, oil, gas, and other fluids. They enable the splitting or combining of flows in processing plants, refineries, and manufacturing facilities.
4. Firefighting Systems:
In fire protection systems, tees distribute water or fire retardants through sprinkler networks, ensuring quick and effective coverage in emergencies.
5. Drainage and Sewage Systems:
Tees are used in drainage and sewage systems to manage wastewater flow, redirecting it to treatment plants or main sewer lines. They are crucial for maintaining efficient waste disposal.
Pipe fitting tees are highly versatile, available in various materials, sizes, and connection types. They can be used in diverse applications, including plumbing, HVAC, industrial pipelines, and chemical processing, making them suitable for both residential and industrial systems.
Tees allow for efficient branching, combining, or redirecting of fluid or gas flow. This ensures optimal distribution and control of materials within a piping system, enhancing overall system performance.
Tees enable compact pipeline layouts by allowing directional changes and branching in confined spaces. This is particularly useful in complex systems where space is limited.
Made from robust materials like stainless steel, carbon steel, or alloy steel, tees are durable and resistant to corrosion, pressure, and temperature variations, ensuring long-term reliability.
With various connection methods (threaded, welded, compression, etc.), tees are easy to install and maintain, reducing downtime and labor costs in piping systems.
