Pipe Fittings Reducer

Pipe Reducer Types

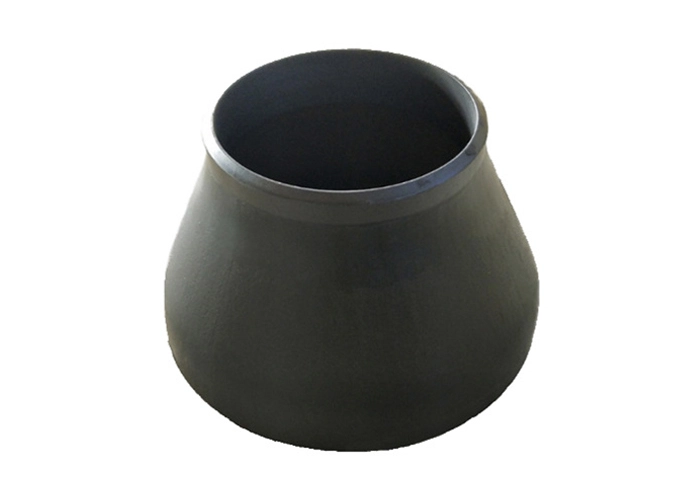

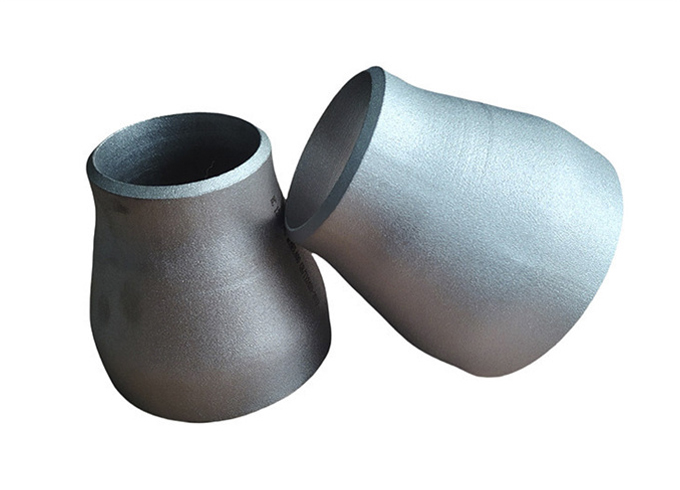

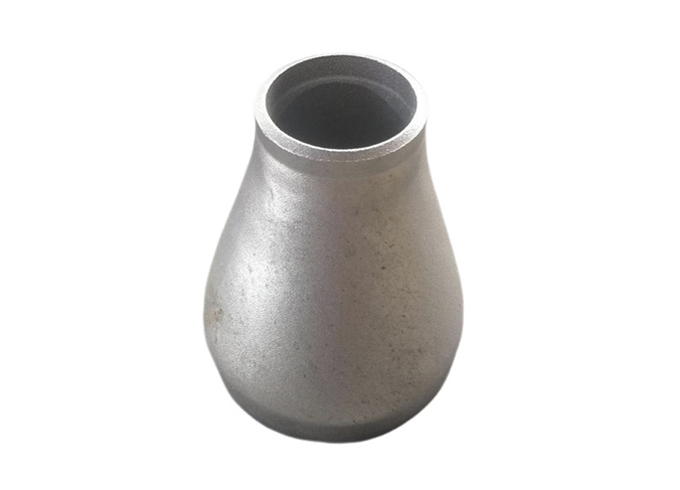

1. Concentric Pipe Reducer:

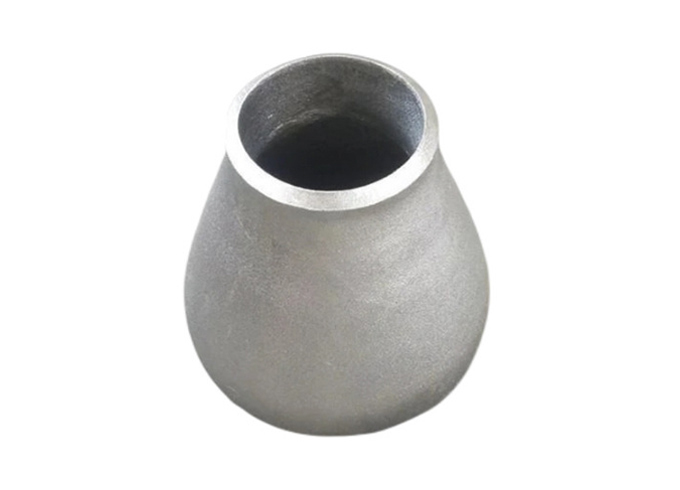

A concentric reducer is a symmetrical pipe fitting that tapers uniformly from a larger diameter to a smaller diameter, maintaining a common centerline for both ends. It is shaped like a cone and is used to join two pipes of different sizes while keeping the pipeline aligned.

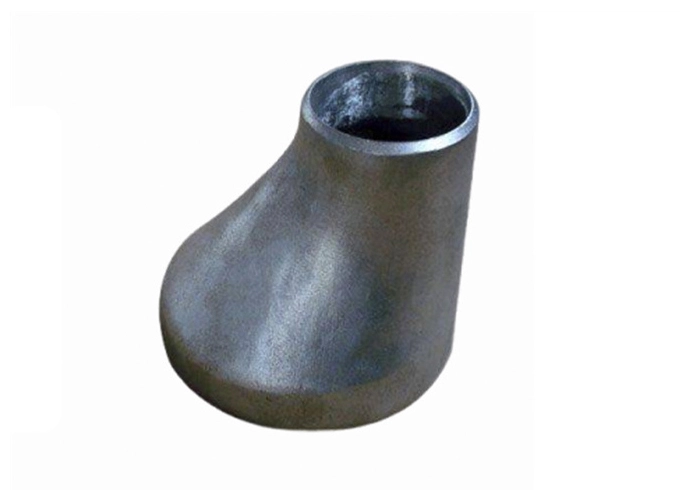

2. An eccentric reducer is an asymmetrical pipe fitting that tapers from a larger diameter to a smaller diameter but with one side flat or offset. This design ensures that one edge of the reducer remains straight, while the other slopes.

3. Differences Between Concentric and Eccentric Reducers

Concentric reducers and eccentric reducers are both used to connect pipes of different diameters, but they have distinct designs and applications.

Concentric reducers have a symmetrical shape with a central axis, providing a smooth transition between pipe sizes. They are commonly used in vertical pipes and systems where maintaining a consistent flow is important.

Eccentric reducers, on the other hand, have an offset axis, with the smaller end positioned to one side of the larger end. This design helps prevent air pockets and fluid accumulation in horizontal pipes, making them ideal for applications where fluid level consistency is crucial.

Pipe Reducer Types According to the Connection Method

1. Butt-Welded Reducers:

These reducers are welded directly to the pipes, creating a permanent and strong connection. They are suitable for high-pressure and high-temperature applications.

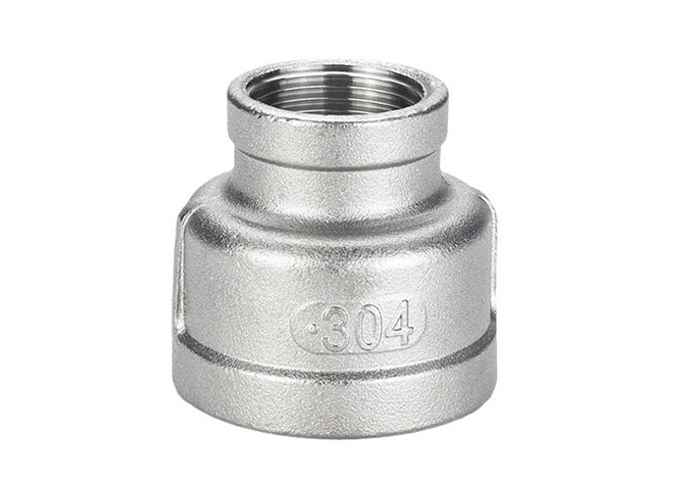

2. Threaded Reducers:

These reducers have threaded ends that allow for easy installation without welding. They are typically used in small-diameter piping systems where frequent disassembly is required.

Pipe Reducer Types According to Material

1. Carbon Steel Reducers:

Characteristics: High strength, high-pressure resistance, and wear resistance. However, they are more susceptible to corrosion.

Applications: Widely used in oil and gas, petrochemical, and power generation industries.

Standards and Grades: ASTM A234 WPB, A420 WPL6, MSS-SP-75 WPHY 42, 46, 52, 56, 60, 65, and 70.

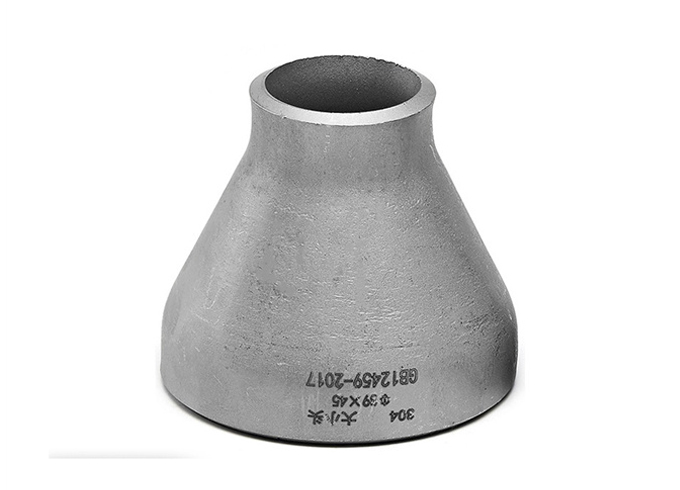

2. Stainless Steel Reducers:

Characteristics: Excellent corrosion resistance, suitable for harsh environments and corrosive fluids.

Applications: Food and beverage, pharmaceutical, chemical processing, and marine applications.

Standards and Grades: ASTM A403 WP 304, 304L, 316, 316L, 317, 317L, 321, 310, and 904L.

3. Alloy Steel Reducers:

Characteristics: Engineered to withstand extreme conditions, including high temperatures and pressures.

Applications: Power plants, petrochemical industries, and other high-stress environments.

Standards and Grades: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91.

Application of Pipe Fitting Reducers

1. Oil and Gas Industry: Used in pipelines to connect different diameter pipes, ensuring smooth flow of oil and gas. They help regulate pressure and velocity, preventing damage to equipment.

2. Chemical Processing: Essential for connecting pipes in chemical plants. Reducers manage flow rates and prevent turbulence, ensuring safe and efficient chemical transportation.

3. Water Treatment: Facilitate the connection of pipes in water treatment plants. They help control water flow and pressure, ensuring efficient treatment processes.

4. Residential Plumbing: Used in home plumbing systems to connect pipes of different sizes. They ensure proper water flow and prevent leaks, maintaining the integrity of the plumbing system.
