Pipe fitting elbows are components used to change the direction of fluid flow in piping systems.the primary function of pipe fitting elbows is to alter the flow direction efficiently while maintaining the integrity of the piping system. They are typically manufactured in standard angles, such as 45°, 90°, and 180°, and are available in various materials like carbon steel, stainless steel, and PVC. Elbows can be seamless or welded, with threaded, socket-weld, or butt-weld ends for easy installation. Their design ensures smooth flow transition, minimizing pressure drops and turbulence in the system.

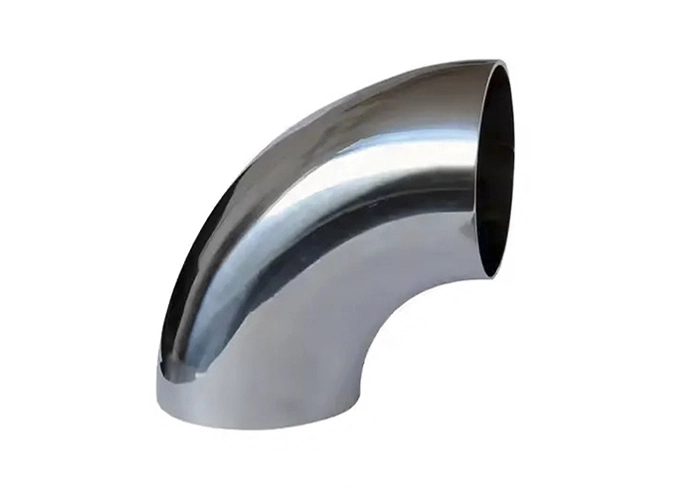

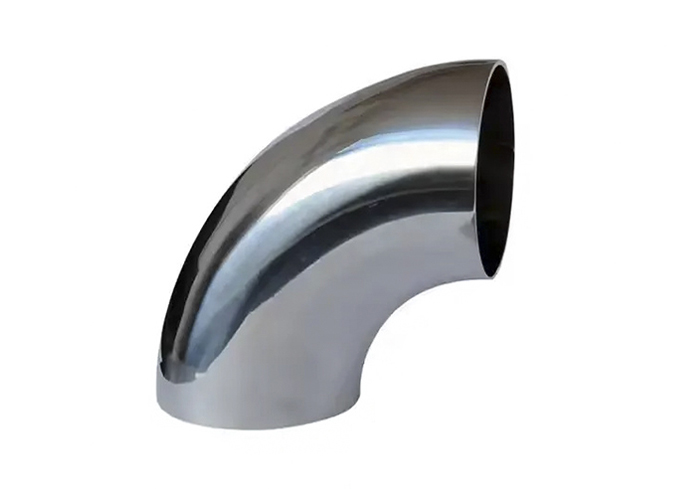

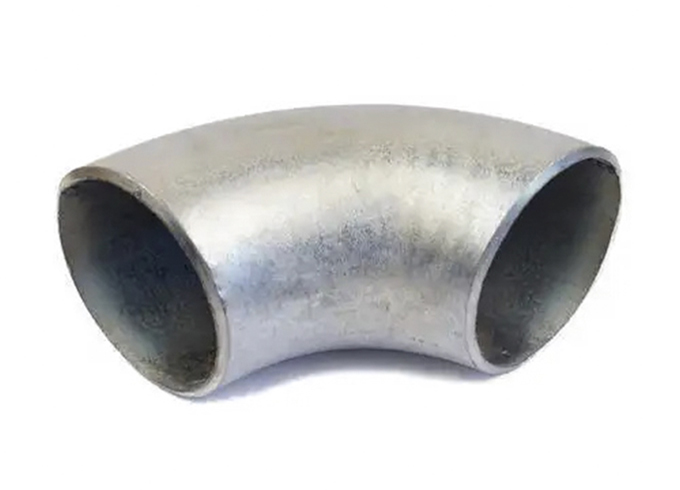

1. 90° pipe fitting elbows
Description: Changes the flow direction by 90 degrees.
Applications: Widely used in plumbing, HVAC, and industrial piping systems where a sharp turn is required.
Variants: Long radius (LR) and short radius (SR) options for different flow efficiency needs.

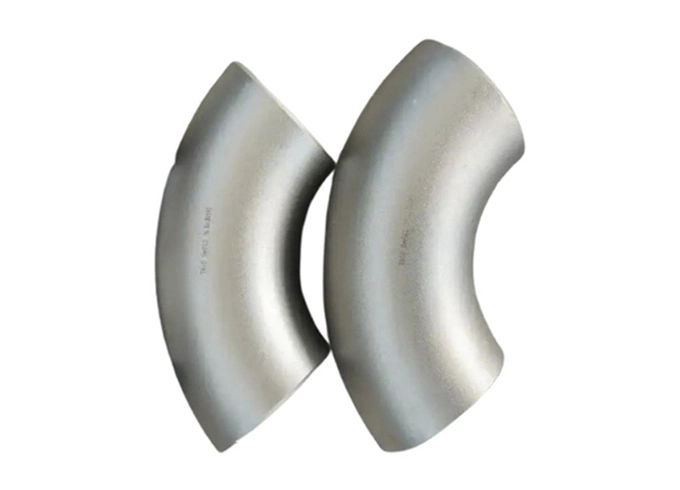

2. 45° pipe fitting elbows
Description: Changes the flow direction by 45 degrees.
Applications: Used in systems requiring a gentler turn, such as water supply lines and low-pressure systems.
Advantages: Reduces pressure drop and turbulence compared to 90° elbows.

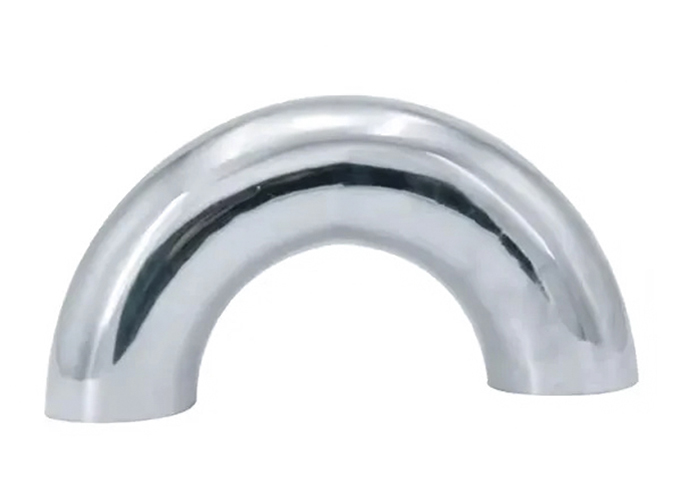

3. 180° pipe fitting elbows (Return Bend)
Description: Reverses the flow direction by 180 degrees.
Applications: Commonly used in heating and cooling systems, as well as in pipelines requiring a complete U-turn.
Variants: Often used in tight spaces where a full reversal is needed.
1. Threaded Pipe Elbows

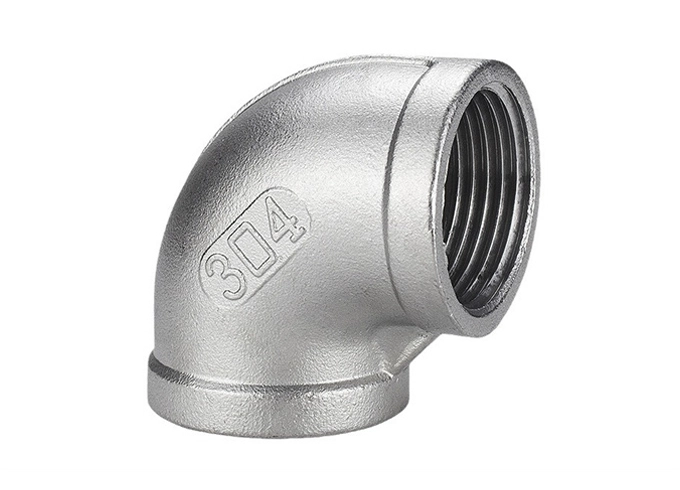

Description: Feature internal or external threads for screwing onto pipes.
Applications: Commonly used in low-pressure systems, such as plumbing and small-scale industrial setups.
Advantages: Easy to install and dismantle without welding.

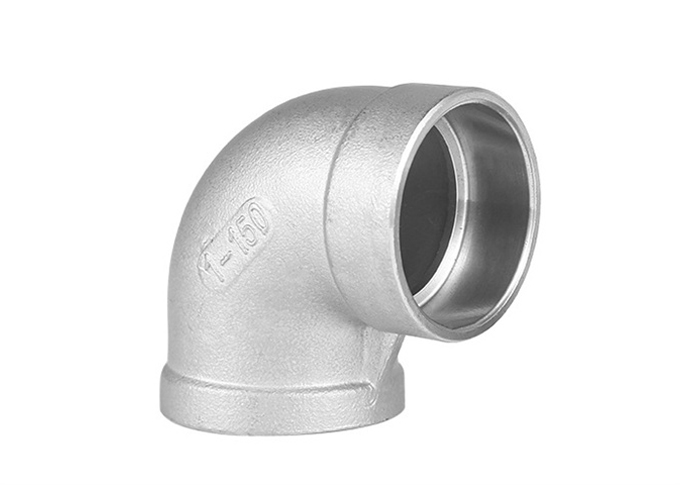

2. Socket Weld Pipe Elbows
Description: Designed to fit into a socket on the pipe, followed by welding around the joint.
Applications: Ideal for small-diameter pipes in high-pressure systems, such as oil and gas or chemical plants.
Advantages: Provides strong, leak-proof connections.

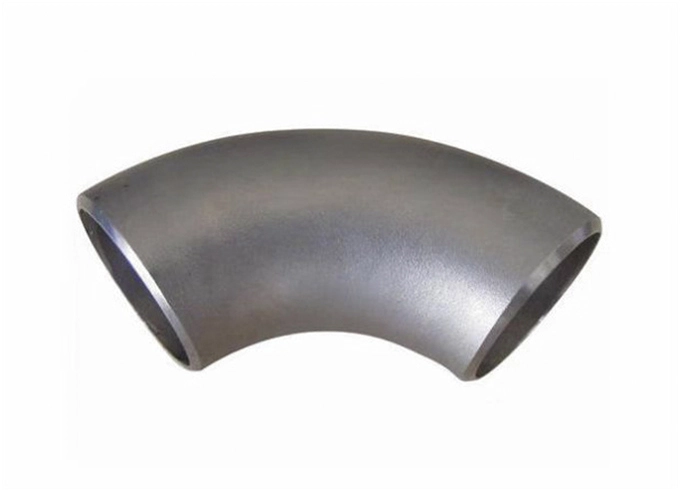

3. Butt Weld Pipe Elbows

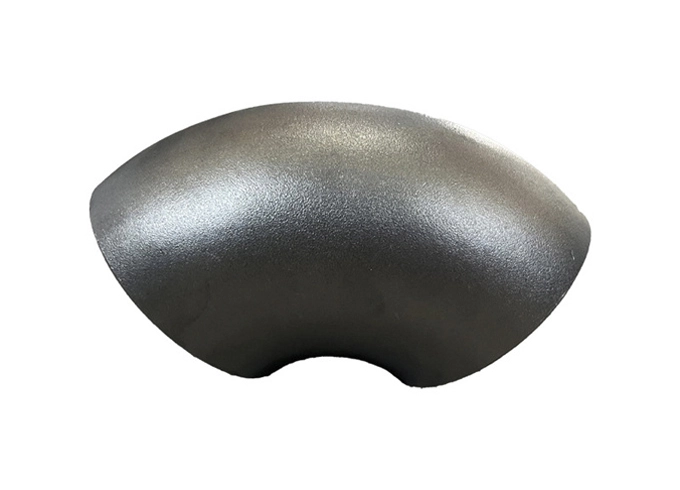

Description: Welded directly to the pipe end, creating a seamless and robust connection.
Applications: Used in high-pressure, high-temperature systems, such as power plants and refineries.
Advantages: Durable, leak-proof, and suitable for large-diameter pipes.
1. Carbon Steel Pipe Elbows
Description: Made from carbon steel, known for its strength and durability.
Applications: Used in high-pressure and high-temperature systems, such as oil and gas pipelines, power plants, and industrial machinery.
Advantages: High strength, cost-effective, and suitable for heavy-duty applications.

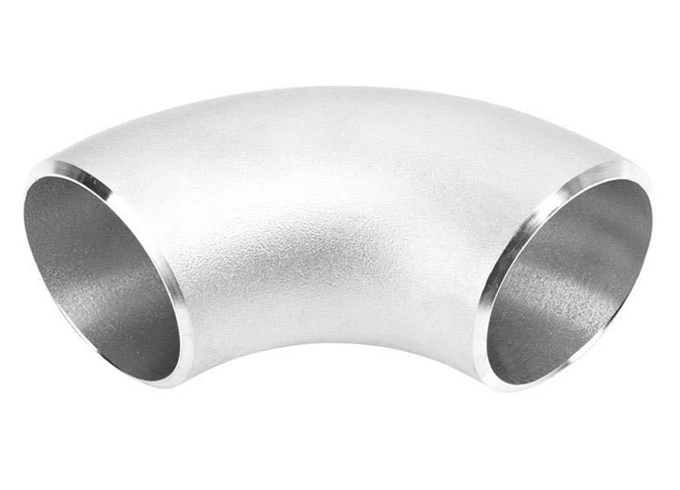

2. Stainless Steel Pipe Elbows
Description: Made from stainless steel, offering excellent corrosion resistance.
Applications: Ideal for chemical processing, food and beverage, pharmaceutical, and marine industries.
Advantages: Resistant to rust, chemicals, and high temperatures; hygienic and easy to clean.
3. Alloy Steel Pipe Elbows
Description: Made from alloy steels (e.g., chromium-molybdenum) for enhanced mechanical properties.
Applications: Used in high-stress environments, such as petrochemical plants and power generation.
Advantages: High strength, heat resistance, and durability under extreme conditions.
1. Plumbing: Water supply, drainage, sewage systems
2. Oil and Gas: Drilling rigs, refineries, distribution networks
3. Chemical/Petrochemical: Acid transfer, chemical reactors, storage tanks
4. Power Generation: Boiler feedwater, turbine connections, condenser systems
5. Marine/Offshore: Ship piping, offshore oil rigs, desalination plants
6. Automotive/Aerospace: Fuel lines, hydraulic systems, cooling circuits
7. Food and Beverage: Milk processing, beverage dispensing, CIP systems
Elbows allow pipelines to change direction, navigating obstacles and fitting complex layouts. This optimizes space and simplifies design.
Smoothly curved elbows, like long-radius ones, minimize turbulence and pressure loss. This improves flow efficiency and reduces energy use.
Elbows distribute stress evenly at joints, reducing wear and tear. This extends the lifespan of the piping system and lowers maintenance costs.
Properly installed elbows create secure, leak-proof connections. This ensures system reliability and prevents fluid loss or contamination.
Elbows with threaded, flanged, or compression connections are easy to install and replace. This reduces downtime and labor costs during repairs.
Elbows made from materials like stainless steel, PVC, or nickel alloys resist corrosion. This makes them ideal for harsh environments, such as chemical plants or marine applications.
