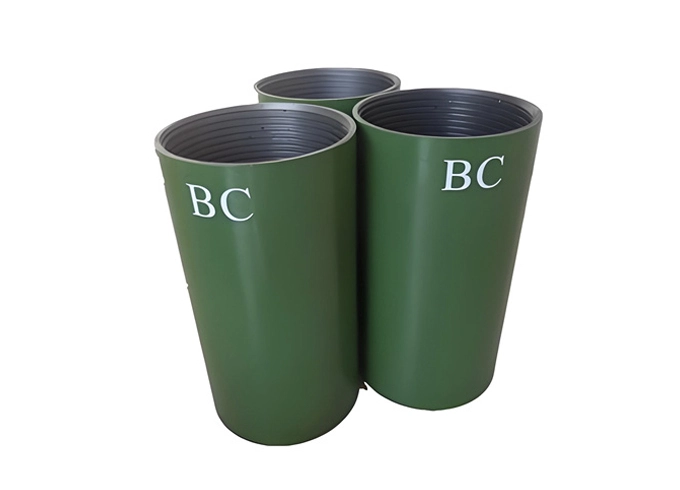

API 5CT P110 casing coupling is a connector for P110-grade casing used in high-pressure oil and gas wells. P110 is a high-strength steel grade defined by API 5CT, offering a minimum yield strength of 110,000 psi (758 MPa). It is heat-treated (quenched and tempered) for superior strength and toughness, making it ideal for high-pressure, high-stress environments.
P110 couplings are manufactured to API 5CT standards, ensuring quality, reliability, and interchangeability. They are commonly used in deep wells and harsh drilling conditions where exceptional mechanical performance is required. However, P110 is less resistant to corrosion, so it may require additional protection in corrosive environments.
| Product: | API 5CT Casing Coupling, Casing Coupling, P110 Casing Coupling |
| Application: | Used for connect 2 joints of tubing or casing |
| Casing Couping: 4-1/2'' - 13-3/8'' | |
| Pipe Standard: | API 5CT and 5B PSL1/PSL2 J55, K55, N80-1, N80-Q, |
| API 5CT and 5B L80-1, C90, C95, T95, P110, Q125 | |
| Surface: | Whole Phosphating or inside phosphating and outside coating |
| Thread: | NUE, EUE, STC, LTC, BTC, XC, HYDRILL CS |
| Special Service | Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156 |
| Packing: | By carton, wooden case, wooden pallet or requirement of customer |
| MOQ | 1 ton |
| Packing | Standard Seaworthy Packing |
| Supply Ability | 3000Tons per Month |
| API 5CT P110 Chemical Composition | ||||||||||
| Grade | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr≤ | Ni≤ | Cu≤ | Mo≤ | V≤ |
| API 5CT P110 | 0.26-035 | 0.17-0.37 | 0.40-0.70 | 0.02 | 0.01 | 0.80-1.10 | 0.2 | 0.2 | 0.15-0.25 | 0.08 |
| API 5CT P110 Mechanical Property | ||||
| Grade | Type | Yield strength MPa | Tensile strength min. MPa | Total elongation under load % |
| P110 | / | 758-965 | 862 | 0.6 |
| TYPE | Casing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (lbs) | Palletized Carton Quantity | Palletized Carton Weight |
| API 5CT Casing Coupling | 4 1/2″ | 5 | 7 | 9.07 | 294 | 2697 |
| 5″ | 5.563 | 7.75 | 12.56 | 210 | 2573 | |
| 5 1/2″ | 6.05 | 8 | 14.03 | 180 | 2555 | |
| 6 5/8″ | 7.39 | 8.75 | 24.82 | 100 | 2315 | |
| 7″ | 7.656 | 9 | 23.67 | 100 | 2351 | |
| 7 5/8″ | 8.5 | 9.25 | 34.23 | 80 | 2807 | |
| 8 5/8″ | 9.625 | 10 | 47.48 | 48 | 2337 | |
| 9 5/8″ | 10.625 | 10.5 | 55.77 | 40 | 2302 | |
| 10 3/4″ | 11.75 | 10.5 | 62.38 | 45 | 36 | |
| 11 3/4″ | 12.75 | 10.5 | 67.59 | 30 | 24 | |
| 13 3/8″ | 14.375 | 10.5 | 76.63 | 25 | 20 |
With a minimum yield strength of 110,000 psi, P110 couplings are ideal for high-pressure and high-stress environments, such as deep wells.
Heat treatment (quenching and tempering) enhances toughness, ensuring durability and resistance to mechanical stress.
Manufactured to API 5CT standards, P110 couplings ensure consistent quality, reliability, and interchangeability.
Suitable for demanding drilling conditions, including deep and ultra-deep wells, where exceptional strength is required.
Compatible with various casing sizes and weights, making them versatile for different well configurations.
Provides a balance of performance and cost in environments where lower-grade materials would fail.
