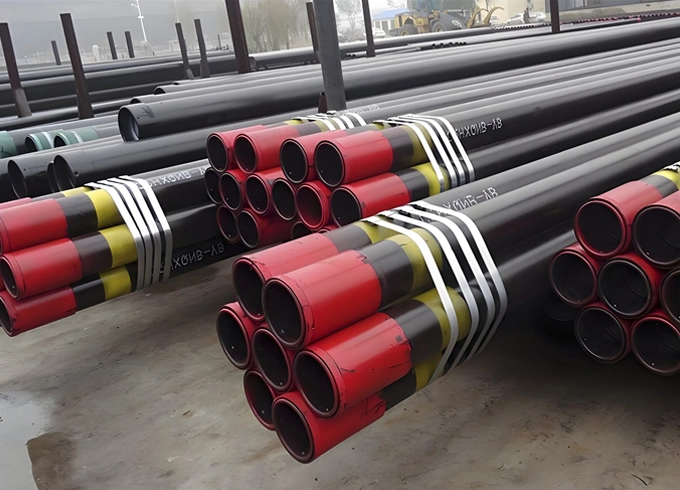

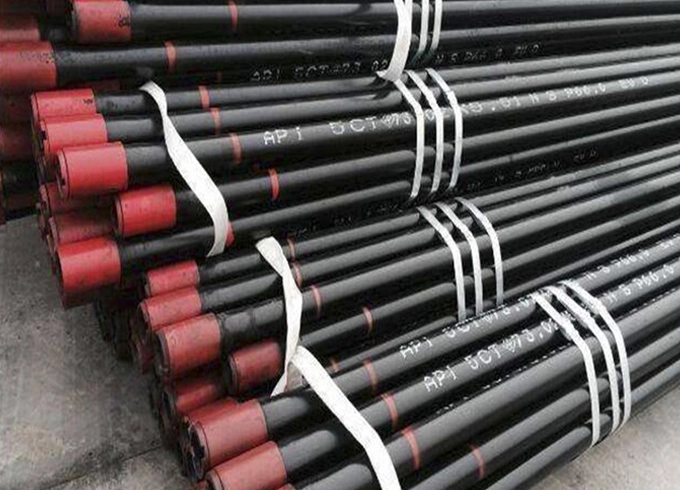

API 5CT N80 tubing pipe is a high-strength steel tube used in oil and gas wells, conforming to API (American Petroleum Institute) standards. It is designed for medium to high-pressure environments and offers superior mechanical properties compared to lower grades like J55. N80 tubing is heat-treated to enhance its tensile and yield strength, making it suitable for deeper wells and more challenging conditions.
This pipe is designed to provide structural support and is used in medium-pressure wells where there is a higher risk of collapse. It is suitable for a variety of well environments, including high-pressure and high-temperature wells, horizontal wells, and offshore drilling operations. The main function of N80 tubing is to safely transport fluids such as oil and gas from the bottom of the well to the surface.
| product name | API-5CT tubing Pipe, N80 tubing Pipe, API-5CT tubing, Oil tubing pipe, Oil well tubing, tubing pipe oil and gas, Oil field tubing Pipe |
| Outer Diamater | 48.26mm-114.3mm |
| Wall Thickness | 3.18mm-16mm |
| Thread Type | NUE, EUE, STC, LTC, BTC, XC, HYDRILL CS |
| Standards | API 5CT PSL1/PSL2 |
| Steel Grade | H40 J55 K55 N80 N80Q L80 P110 T95 Q125 |
| Surface Treatment | Hot Rolled |
| Special Pipe | API Pipe, Thick Wall Pipe, Other |
| Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, OIL PIPE, Gas Pipe, Chemical Fertilizer Pipe |
| Certificate | API, ISO9001 |
| Length | R1, R2, R3 |
| MOQ | 1 ton |
| Packing | Standard Seaworthy Packing |
| Supply Ability | 3000Tons per Month |
| API 5CT N80 Chemical Composition | ||||||||||
| Grade | Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) | Silicon (Si) | Chromium (Cr) | Molybdenum (Mo) | Nickel (Ni) | Copper (Cu) | Vanadium (V) |
| API 5CT N80 | 0.34 max | 1.90 max | 0.030 max | 0.030 max | 0.10–0.50 | 0.15–0.25 | 0.10–0.25 | 0.20 max | 0.20 max | 0.02–0.08 |
| API 5CT N80 Mechanical Property | |||||||
| Grade | Type | Total elongation under load (%) | Yield strength (min) | Yield strength (max) | Tensile strength min Mpa | Hardness Max (HRC) | Hardness Max (HBW) |
| N80 | 1 | 0.5 | 552 | 758 | 689 | - | - |
| N80 | Q | 0.5 | 552 | 758 | 689 | ||
| Label | OD (mm) | WT (mm) | Type of End-finish | |||||||||
| Inch | NU T&C | EU T&C | IJ | H40 | J55 | L80 | N80 | C90 | T95 | P110 | ||
| 1.9 | 2.75 | 2.9 | 2.76 | 48.26 | 3.68 | PNUI | PNUI | PNUI | PNUI | PNUI | PNUI | - |
| 1.9 | 3.65 | 3.73 | - | 48.26 | 5.08 | PU | PU | PU | PU | PU | PU | PU |
| 1.9 | 4.42 | - | - | 48.26 | 6.35 | - | - | P | - | P | P | - |
| 2 3/8 | 4 | - | - | 60.32 | 4.24 | PU | PN | PN | PN | PN | PN | - |
| 2 3/8 | 4.6 | 4.7 | - | 60.32 | 4.83 | PNU | PNU | PNU | PNU | PNU | PNU | PNU |
| 2 3/8 | 5.8 | 5.95 | - | 60.32 | 6.45 | - | - | PNU | PNU | PNU | PNU | PNU |
| 2 3/8 | 6.6 | - | - | 60.32 | 7.49 | - | - | P | - | P | P | - |
| 2 3/8 | 7.35 | 7.45 | - | 60.32 | 8.53 | - | - | PU | - | PU | PU | - |
| 2 7/8 | 6.4 | 6.5 | - | 73.02 | 5.51 | PNU | PNU | PNU | PNU | PNU | PNU | PNU |
| 2 7/8 | 7.8 | 7.9 | - | 73.02 | 7.01 | - | - | PNU | PNU | PNU | PNU | PNU |
| 2 7/8 | 8.6 | 8.7 | - | 73.02 | 7.82 | - | - | PNU | PNU | PNU | PNU | PNU |
| 2 7/8 | 9.35 | 9.45 | - | 73.02 | 8.64 | - | - | PU | - | PU | PU | - |
| 2 7/8 | 10.5 | - | - | 73.02 | 9.96 | - | - | P | - | P | P | - |
| 3 1/2 | 7.7 | - | - | 88.9 | 5.49 | PN | PN | PN | PN | PN | PN | - |
| 3 1/2 | 9.2 | 9.3 | - | 88.9 | 6.45 | PNU | PNU | PNU | PNU | PNU | PNU | PNU |
| 3 1/2 | 10.2 | - | - | 88.9 | 7.34 | PN | PN | PN | PN | PN | PN | - |
| 3 1/2 | 12.7 | 12.95 | - | 88.9 | 9.52 | - | - | PNU | PNU | PNU | PNU | PNU |
| 3 1/2 | 14.3 | - | - | 88.9 | 10.92 | - | - | P | - | P | P | - |
| 3 1/2 | 15.5 | - | - | 88.9 | 12.09 | - | - | P | - | P | P | - |
| 4 | 9.5 | - | - | 101.6 | 5.74 | PN | PN | PN | PN | PN | PN | - |
| 4 | 10.7 | 11 | - | 101.6 | 6.65 | PU | PU | PU | PU | PU | PU | - |
| 4 | 13.2 | - | - | 101.6 | 8.38 | - | - | P | - | P | P | - |
| 4 | 16.1 | - | - | 101.6 | 10.54 | - | - | P | - | P | P | - |
| 4 1/2 | 12.6 | 12.75 | - | 114.3 | 6.88 | PNU | PNU | PNU | PNU | PNU | PNU | - |
| 4 1/2 | 15.2 | - | - | 114.3 | 8.56 | - | - | P | - | P | P | - |
API 5CT N80 tubing pipe is a high-performance steel tube widely used in oil and gas wells due to its superior strength and durability. It offers excellent tensile and yield strength, making it suitable for medium to high-pressure environments and deeper wells. N80 tubing is heat-treated to enhance its mechanical properties, ensuring reliability in challenging drilling conditions such as hydraulic fracturing and high-stress reservoirs. Its ability to withstand higher internal and external pressures ensures wellbore stability and safe production operations.
N80 tubing also provides moderate corrosion resistance, making it suitable for mildly corrosive environments. While not ideal for highly corrosive conditions, it performs well in standard oil and gas applications. Its robust construction and balanced properties make it versatile for use in various well types, including geothermal and high-pressure wells.
Compliance with API 5CT standards guarantees consistent quality, reliability, and compatibility with other well components. Additionally, N80 tubing offers a cost-effective solution for demanding but not extreme conditions, providing a balance between performance and affordability. Its widespread availability and ease of installation further enhance its appeal, making it a preferred choice for operators seeking durable and efficient tubing for medium to high-pressure applications.
