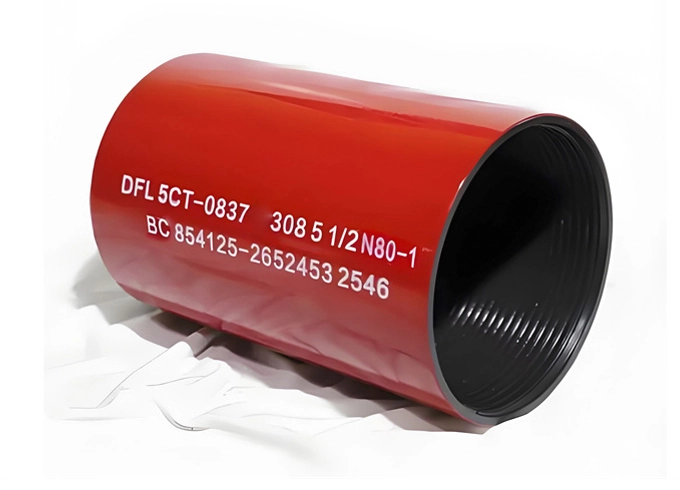

API 5CT N80 casing coupling is a connector for N80-grade casing used in oil and gas wells. N80 is a mid-range steel grade defined by API 5CT, offering a minimum yield strength of 80,000 psi (551 MPa). It is heat-treated for enhanced strength and toughness, making it suitable for medium to high-pressure wells.
N80 is available in two types: Type 1 (standard carbon steel) and Type Q (quenched and tempered for improved performance). These couplings are manufactured to API 5CT standards, ensuring quality, reliability, and interchangeability. N80 couplings are widely used in drilling operations requiring higher strength and durability than lower grades like J55 or K55.
| Product: | API 5CT Casing Coupling, Casing Coupling, N80 Casing Coupling |
| Application: | Used for connect 2 joints of tubing or casing |
| Casing Couping: 4-1/2'' - 13-3/8'' | |
| Pipe Standard: | API 5CT and 5B PSL1/PSL2 J55, K55, N80-1, N80-Q, |
| API 5CT and 5B L80-1, C90, C95, T95, P110, Q125 | |
| Surface: | Whole Phosphating or inside phosphating and outside coating |
| Thread: | NUE, EUE, STC, LTC, BTC, XC, HYDRILL CS |
| Special Service | Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156 |

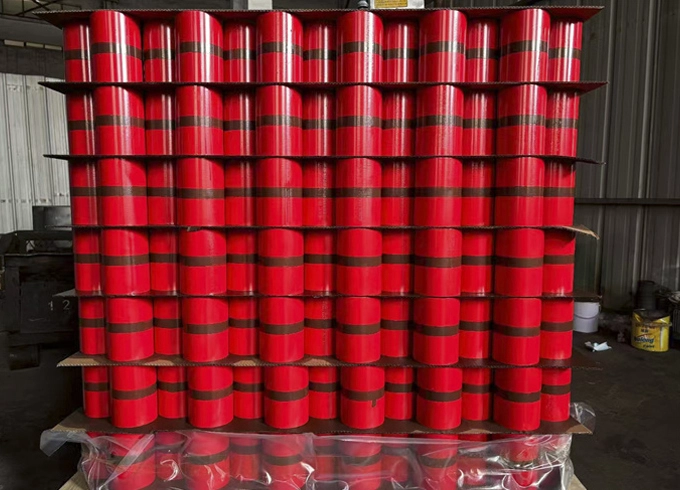

| Packing: | By carton, wooden case, wooden pallet or requirement of customer |
| MOQ | 1 ton |
| Packing | Standard Seaworthy Packing |
| Supply Ability | 3000Tons per Month |
| API 5CT N80 Chemical Composition | |||||||||
| Grade | C | Si | Mn | P | S | Cr | Ni | Cu | Mo |
| N80 type1/Q | 0.34-0.38 | 0.20-0.35 | 1.45-1.70 | 0.02 | 0.015 | 0.15 | / | / | / |
| API 5CT N80 Mechanical Property | |||
| Grades | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation under load, % |
| N80 type 1 | 552-758 | 689 | 0.5 |
| N80 type Q | 552-758 | 689 | 0.5 |
| TYPE | Casing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (lbs) | Palletized Carton Quantity | Palletized Carton Weight |
| API 5CT Casing Coupling | 4 1/2″ | 5 | 7 | 9.07 | 294 | 2697 |
| 5″ | 5.563 | 7.75 | 12.56 | 210 | 2573 | |
| 5 1/2″ | 6.05 | 8 | 14.03 | 180 | 2555 | |
| 6 5/8″ | 7.39 | 8.75 | 24.82 | 100 | 2315 | |
| 7″ | 7.656 | 9 | 23.67 | 100 | 2351 | |
| 7 5/8″ | 8.5 | 9.25 | 34.23 | 80 | 2807 | |
| 8 5/8″ | 9.625 | 10 | 47.48 | 48 | 2337 | |
| 9 5/8″ | 10.625 | 10.5 | 55.77 | 40 | 2302 | |
| 10 3/4″ | 11.75 | 10.5 | 62.38 | 45 | 36 | |
| 11 3/4″ | 12.75 | 10.5 | 67.59 | 30 | 24 | |
| 13 3/8″ | 14.375 | 10.5 | 76.63 | 25 | 20 |
With a minimum yield strength of 80,000 psi, N80 couplings are suitable for medium to high-pressure wells.
Heat treatment (quenching and tempering) improves toughness, ensuring resistance to stress and impact.
N80 provides a balance between performance and cost, making it a practical choice for many drilling applications.
Compatible with various casing sizes and weights, N80 couplings adapt to different well configurations.
Manufactured to API 5CT standards, ensuring consistent quality, reliability, and interchangeability.
Suitable for both onshore and offshore wells, N80 is ideal for environments requiring higher strength than lower grades like J55 or K55.
