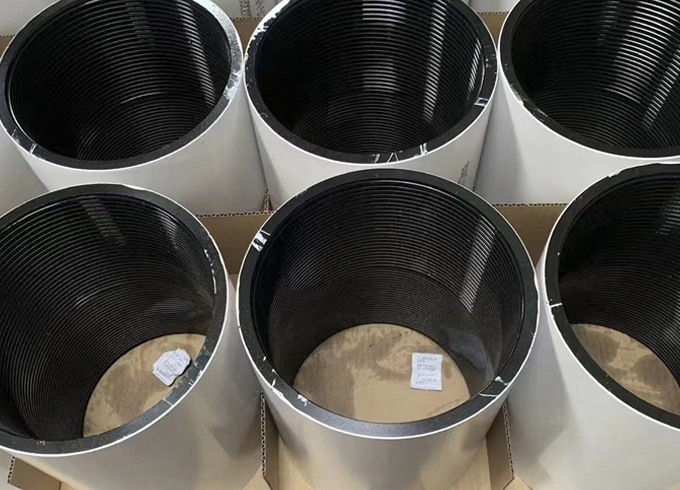

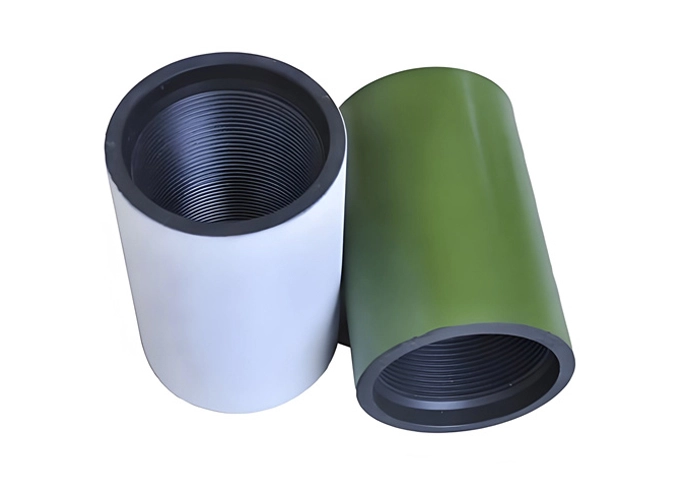

API 5CT L80 tubing coupling is a connector for L80-grade tubing used in oil and gas wells. L80 is a medium-strength steel grade defined by API 5CT, offering a minimum yield strength of 80,000 psi (551 MPa). It is heat-treated (quenched and tempered) for enhanced strength and toughness, making it suitable for medium-pressure wells and mildly corrosive environments.
L80 tubing couplings are manufactured to API 5CT standards, ensuring quality, reliability, and interchangeability. They are available in two types: Type 1 (standard carbon steel) and Type 9 (chromium-based alloy with improved corrosion resistance). L80 is ideal for wells requiring higher durability than J55 but not as high as P110.
| Product: | API 5CT Tubing coupling, Tubing coupling, J55 Tubing coupling |
| Application: | Used for connect 2 joints of tubing or casing |
| tubing Couping: 1.9'' ~ 4-1/2'' | |
| Pipe Standard: | API 5CT and 5B PSL1/PSL2 J55, K55, N80-1, N80-Q, |
| API 5CT and 5B L80-1, C90, C95, T95, P110, Q125 | |
| Surface: | Whole Phosphating or inside phosphating and outside coating |
| Thread: | NUE, EUE, STC, LTC, BTC, XC, HYDRILL CS |
| Special Service | Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156 |
| Packing: | By carton, wooden case, wooden pallet or requirement of customer |
| MOQ | 1 ton |
| Packing | Standard Seaworthy Packing |
| Supply Ability | 3000Tons per Month |
| API 5CT L80 Chemical Composition | ||||||||
| Grade | C | Si | Mn | P | S | Cr | Ni | Cu |
| API 5CT L80 | 0.15-0.22 | 1 | 0.25-1.00 | ≤0.020 | ≤0.010 | 12.0-14.0 | 0.2 | 0.2 |
| API 5CT L80 Mechanical Property | ||||
| Grades | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation under load, % | Hardness, HRC |
| L80 type 1 | 552-655 | 655 | 0.5 | 23 |
| L80 type 9Cr | 552-655 | 655 | 0.5 | 23 |
| L80 type 13Cr | 552-655 | 655 | 0.5 | 23 |
| type | Casing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (lbs) | Palletized Carton Quantity | Palletized Carton Weight |
| API Tubing Couplings | 1.9 | 2.2 | 3.75 | 1.85 | – | – |
| 2.3/8 | 2.875 | 4.5 | 2.82 | 1,512 | 4264 | |
| 2.7/8 | 3.5 | 5.5 | 5.15 | 800 | 4120 | |
| 3.1/2 | 4.25 | 5.625 | 8.17 | 502 | 4101 | |
| 4 | 4.75 | 5.75 | 9.57 | 392 | – | |
| 4.1/2 | 5.2 | 6.5 | 10.76 | 252 | 2712 |
With a minimum yield strength of 80,000 psi, L80 couplings are suitable for medium to high-pressure wells.
Heat treatment (quenching and tempering) improves toughness, ensuring resistance to stress and impact.
L80 Type 9, a chromium-based variant, offers improved corrosion resistance, making it ideal for mildly corrosive environments.
Compatible with various tubing sizes and weights, L80 couplings adapt to different well configurations.
Manufactured to API 5CT standards, ensuring consistent quality, reliability, and interchangeability.
Balances performance and cost, offering a reliable solution without the expense of premium-grade materials.
