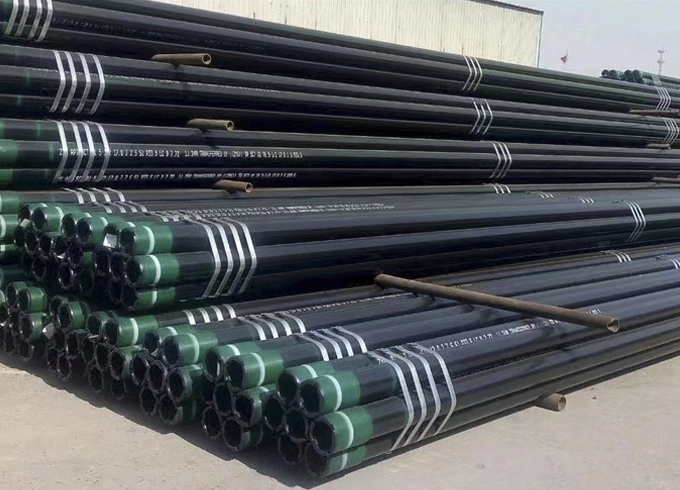

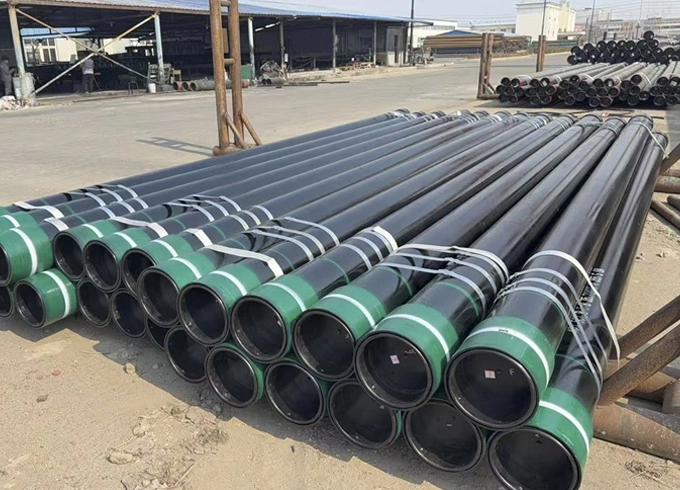

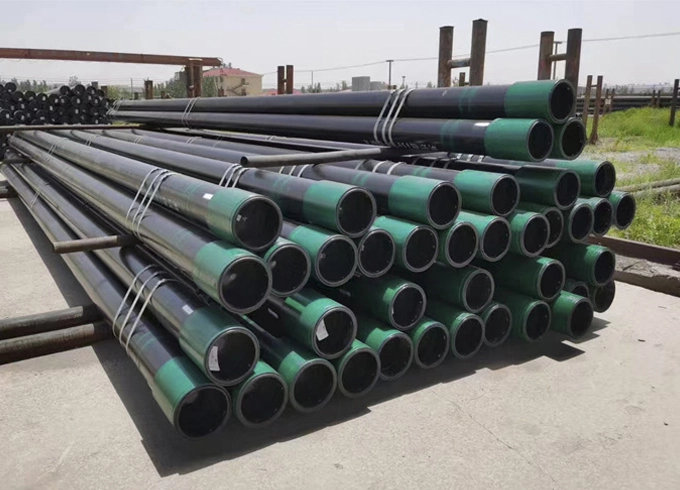

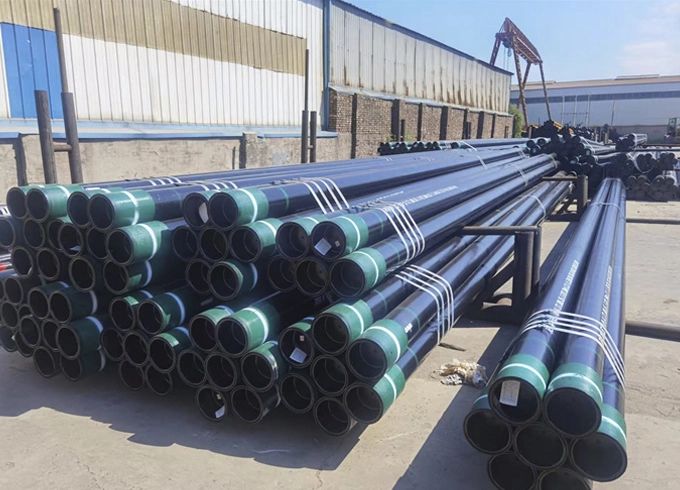

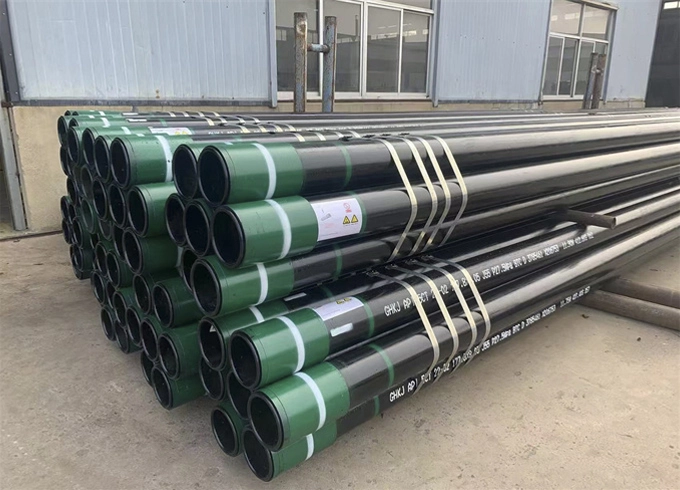

J55 casing pipe is a large-diameter steel tube used in drilling wells, primarily to stabilize the borehole, prevent collapse, and isolate different geological layers. It is part of the API J55 specification and has a minimum yield strength of 55,000 psi. The primary function of J55 casing pipe is to support the wellbore and prevent it from collapsing. It also serves as a conduit for drilling fluid and production fluids. This J55 pipe is commonly used in shallow to medium-depth wells where pressures and temperatures are relatively low. Understanding the J55 casing specifications is crucial for ensuring the reliability and efficiency of drilling operations.
| Items | API-5CT Casing Pipe |
| Material | H40 J55 K55 N80 N80Q L80 P110 T95 Q125 |
| Outer Diamater | 48.26mm-508.00mm |
| Wall Thickness | 3.68mm-16.13mm |
| Thread Type | STC LTC BTC NUE EUE |
| Surface Treatment | Hot Rolled |
| Special Pipe | API Pipe, Thick Wall Pipe, Other |
| Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, OIL PIPE, Gas Pipe, Chemical Fertilizer Pipe |
| Certificate | API, ISO9001 |
| Length | R1 R2 R3 |
| MOQ | 1 ton |
| Packing | Standard Seaworthy Packing |
| Supply Ability | 3000Tons per Month |
| API 5CT J55 Chemical Composition | |||||||||
| Grade | C | Si | Mn | P | S | Cr | Ni | Cu | Mo |
| API 5CT J55 | 0.34-0.39 | 0.20-0.35 | 1.25-1.50 | 0.02 | 0.015 | 0.15 | 0.2 | 0.2 | / |
| API 5CT J55 Mechanical Property | |||
| Steel Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Total elongation under load % |
| API 5CT J55 | 379-552 | ≥517 | 0.5 |
| Outer Diameter | Wall Thickness | Weight | Grade | Threaded | Length | |
| in | mm | kg/m | lb/ft | |||
| 4 1/2″ | 114.3 | 14.14-22.47 | 9.50-11.50 | J55 | LTC/STC/BTC | R1/R2/R3 |
| 5″ | 127 | 17.11-35.86 | 11.50-24.10 | J55 | LTC/STC/BTC | R1/R2/R3 |
| 5 1/2″ | 139.7 | 20.83-34.23 | 14.00-23.00 | J55 | LTC/STC/BTC | R1/R2/R3 |
| 6 5/8″ | 168.28 | 29.76-35.72 | 20.00-24.00 | J55 | LTC/STC/BTC | R1/R2/R3 |
| 7″ | 177.8 | 25.30-56.55 | 17.00-38.00 | J55 | LTC/STC/BTC | R1/R2/R3 |
| 7 5/8″ | 193.68 | 35.72-63.69 | 24.00-42.80 | J55 | LTC/STC/BTC | R1/R2/R3 |
| 8 5/8″ | 219.08 | 35.72-72.92 | 24.00-49.00 | J55 | LTC/STC/BTC | R1/R2/R3 |
| 9 5/8″ | 244.48 | 48.07-86.91 | 32.30-58.40 | J55 | LTC/STC/BTC | R1/R2/R3 |
| 10 3/4″ | 273.05 | 48.73-97.77 | 32.75-65.70 | J55 | LTC/STC/BTC | R1/R2/R3 |
| 11 3/4″ | 298.45 | 62.50-89.29 | 42.00-60.00 | J55 | LTC/STC/BTC | R1/R2/R3 |
| 13 3/8″ | 339.72 | 71.43-107.15 | 48.00-72.00 | J55 | LTC/STC/BTC | R1/R2/R3 |
J55 casing is a mid-grade steel with lower carbon content, making it more affordable compared to higher-grade casings, suitable for shallow to medium-depth wells.
It offers balanced tensile strength, yield strength, and hardness, ensuring reliable performance in less demanding environments.
While not as corrosion-resistant as higher grades, J55 performs well in mild corrosive environments, especially when combined with protective coatings.
As a standard API 5CT grade, J55 is widely produced and readily available, ensuring easy sourcing.
Suitable for a range of applications, including oil, gas, and water wells, particularly in non-aggressive environments.
Manufactured to API 5CT specifications, ensuring consistent quality, reliability, and compatibility with other well components.
