Steel Well Casing Pipe Supplier



In the vast field of oil and gas exploitation, oil casing, as a key tool, plays an indispensable role. It not only carries the task of oil exploitation, but also plays an important role in protecting oil and gas well walls, improving mining efficiency and ensuring production. Oil casing is the protector of oil and gas well wall. In the process of drilling, the formation conditions are complex and changeable, and there may be a variety of challenges such as high pressure, high temperature and corrosive liquids.

Steel Casing Pipe We Offer

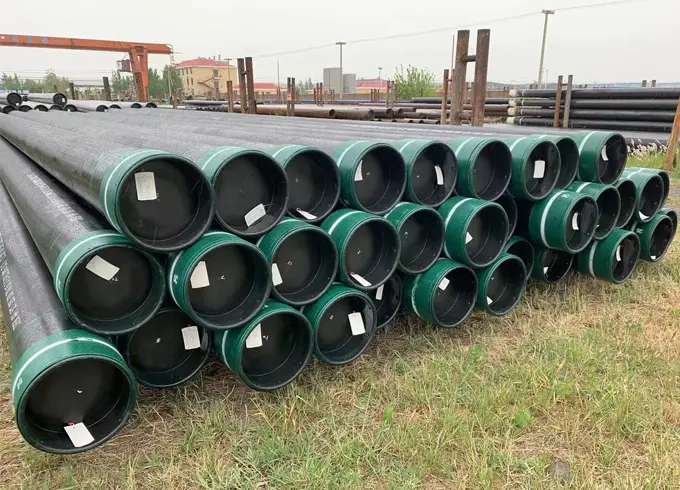

J55 Casing Pipe LTC STC BTC

Surface casing is the first casing installed in oil drilling, which is mainly used to protect wellhead and shallow formation. It is usually made of thick-walled steel pipe and has high strength and compressive resistance. When installing surface casing, ensure that it is securely attached to the wellhead to prevent formation collapse and groundwater intrusion. The surface casing can also play a role in isolating the upper and lower strata to prevent material exchange and mutual influence between different strata.

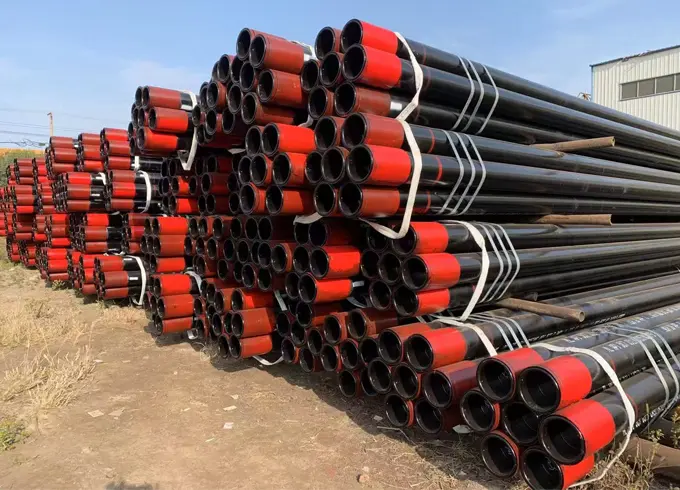

N80 Casing Pipe LTC STC BTC

Intermediate casing is the casing between surface casing and oil casing. It is mainly used to isolate different strata to prevent mutual penetration and cross-contamination of fluids between strata. Intermediate casing is usually composed of multiple layers of steel pipe, each layer of steel pipe is welded or threaded. During the drilling process, as the drill bit deepens, the intermediate casing needs to be installed layer by layer to adapt to different formation pressures and geological conditions.

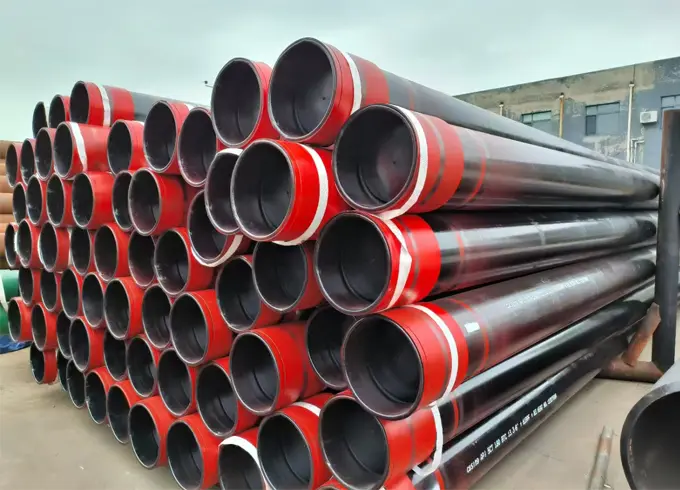

L80 Casing Pipe LTC STC BTC

Oil layer casing is a casing installed in the oil layer, the main function is to fix the oil well structure and prevent oil and gas leakage. Reservoir casing is typically made of high-strength, corrosion-resistant materials to ensure long-term stability in harsh geological environments. The casing also needs to have a good sealing performance to prevent oil and gas from leaking out between the well wall and the casing. In the process of oil well exploitation, oil casing can also play the role of supporting and fixing oil well structure to ensure the stability and safety of oil well.

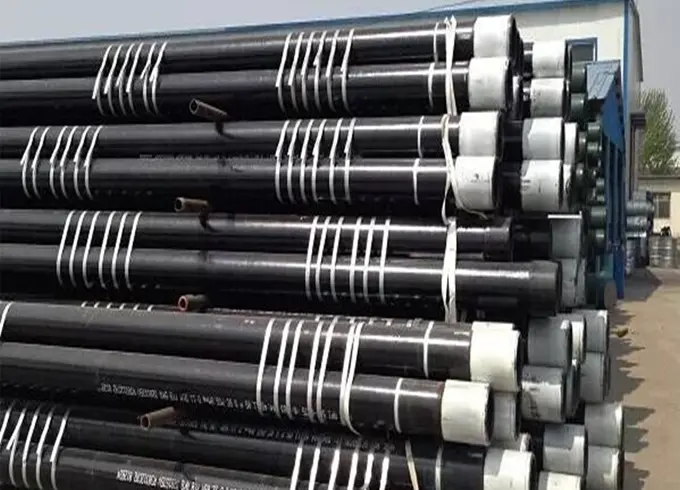

P110 Casing Pipe LTC STC BTC

The functions of surface casing are as follows: (1) isolate the upper aquifer and prevent surface water and surface groundwater from penetrating into the wellbore; ② Protect the well head and strengthen the well wall of the surface soil layer; (3) For those who will encounter high-pressure oil and gas layers when drilling down, install a blowout preventer on the surface casing to prevent blowout. All the gaps between the surface casing and the well wall should be sealed with cement, that is, when cementing, the cement slurry needs to return to the well head to isolate the formation and protect the well wall.

Material Selection

The material selection of oil casing mainly depends on the specific application requirements and geological conditions. Carbon steel casing is suitable for general oil and gas Wells, economical; Alloy steel casing is suitable for oil and gas Wells with complex geological conditions and strong corrosion. Special materials such as 3Cr, 9Cr, 13Cr, 22Cr, etc., are mainly used to prevent carbon dioxide and hydrogen sulfide well conditions.
Performance Requirements

Select the appropriate material according to the corrosion, temperature, pressure and other factors of the well condition. For complex geological conditions or highly corrosive environments, alloy steel or special materials should be selected.
Heat Treatment Process

Certain materials, such as 27MnCrV, can significantly improve their properties, such as toughness and impact resistance, through specific heat treatment processes (such as subtemperature quenching) to meet more stringent application requirements.
Cost Considerations

When selecting oil casing, you also need to consider the cost factor. In general, carbon steel casing is the most affordable option, while alloy steel or special materials casing will cost more.

Functions of Casing Pipes in Oil and Gas

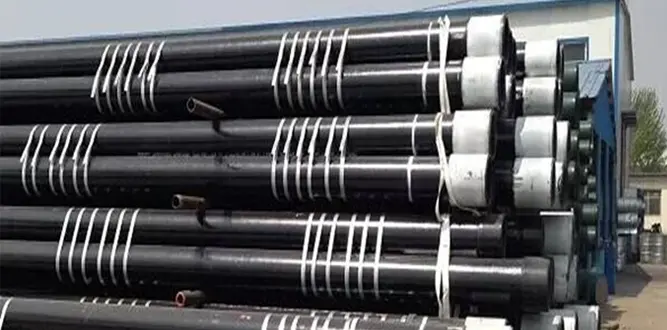

Design Features and Future Prospects

Specially engineered to withstand high temperatures, extreme pressures, and corrosive environments, oil casing guarantees the efficient utilization of oil resources and stable production operations. Advanced materials and manufacturing techniques enhance its durability and reliability. Looking ahead, as technology advances and global energy demands grow, oil casing will play an even more critical role in the oil extraction industry, driving innovation and optimizing resource recovery.

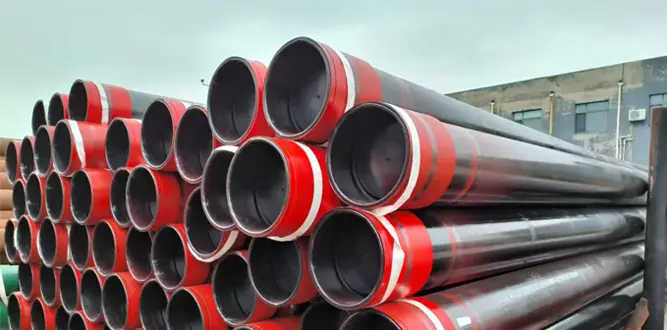

Key Functions of Oil Casing

Oil casing is an indispensable equipment in oil exploitation, primarily used to guide underground oil to the surface while providing protection and support. Its core functions include preventing formation collapse, avoiding wall leakage, controlling drilling mud flow, and enabling stratification control. By ensuring safe and efficient extraction, it reduces operational costs and safeguards the integrity of the wellbore throughout the drilling and production processes.
